Paragon Track Performance Big Brake Kits offer superior braking performance specifically designed for track day enthusiasts, and is a significant upgrade from the OEM Type R setup. Come complete with every component required to upgrade your front brake system. Developed with performance, quality, and longevity in mind, only the finest materials/components were used to ensure the brake kits to perform and last under both street and track conditions.

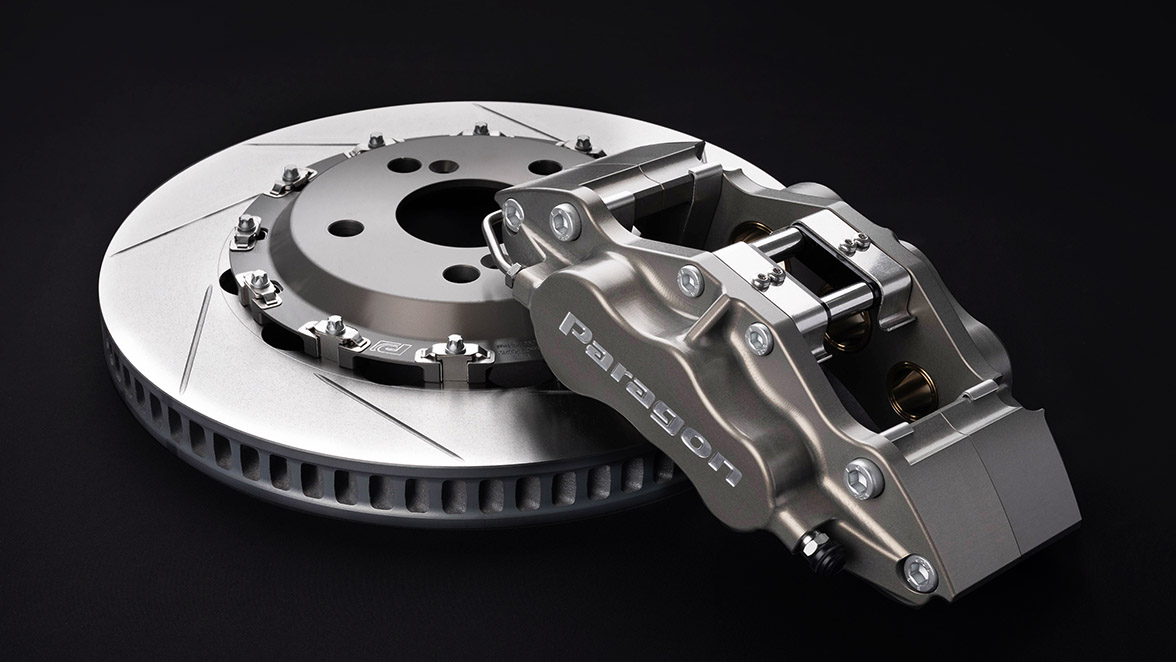

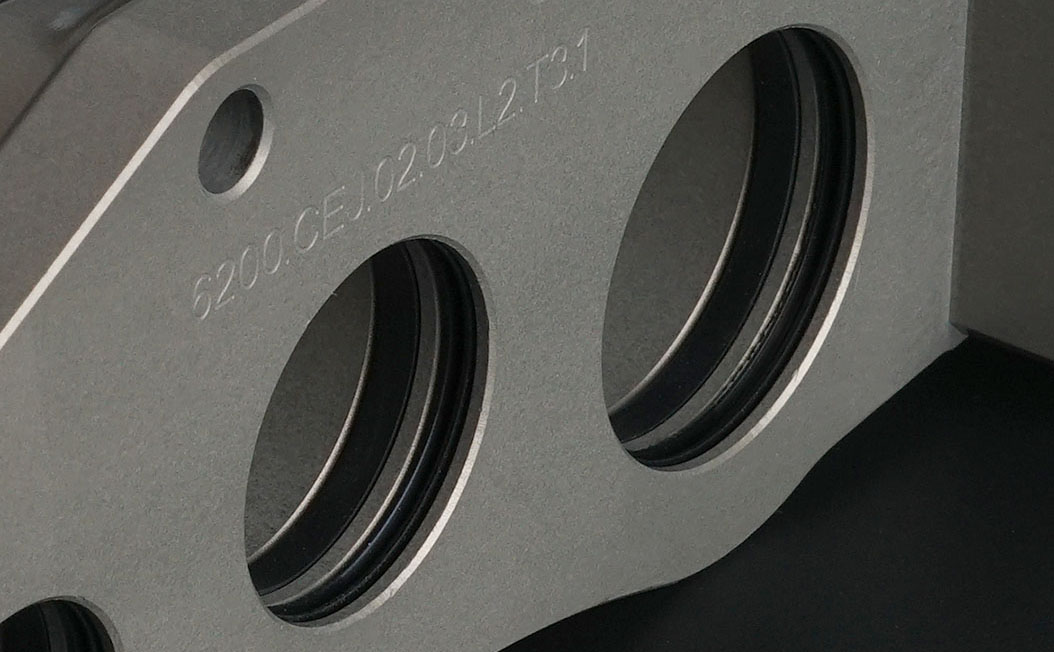

- Features Paragon PA015 / PA035 6 piston calipers

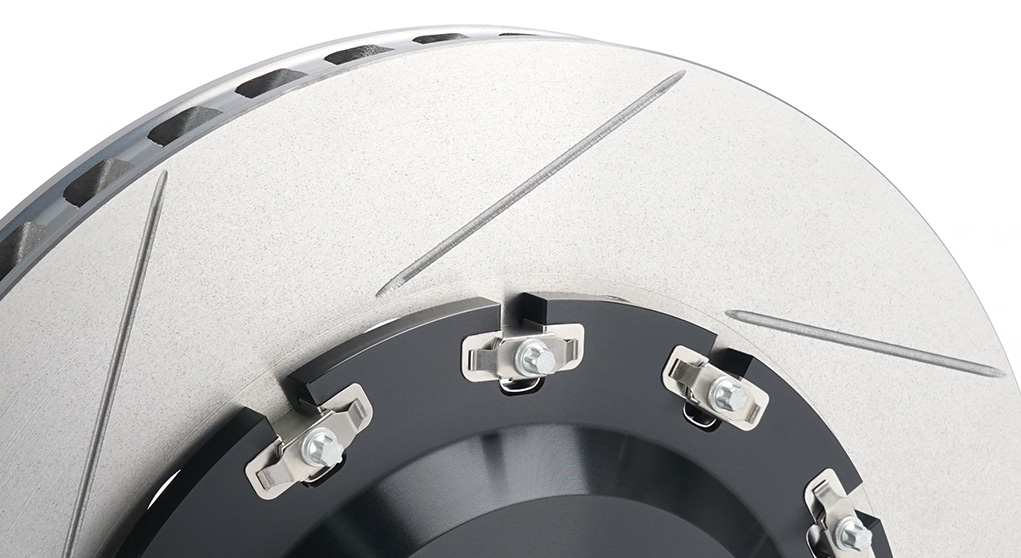

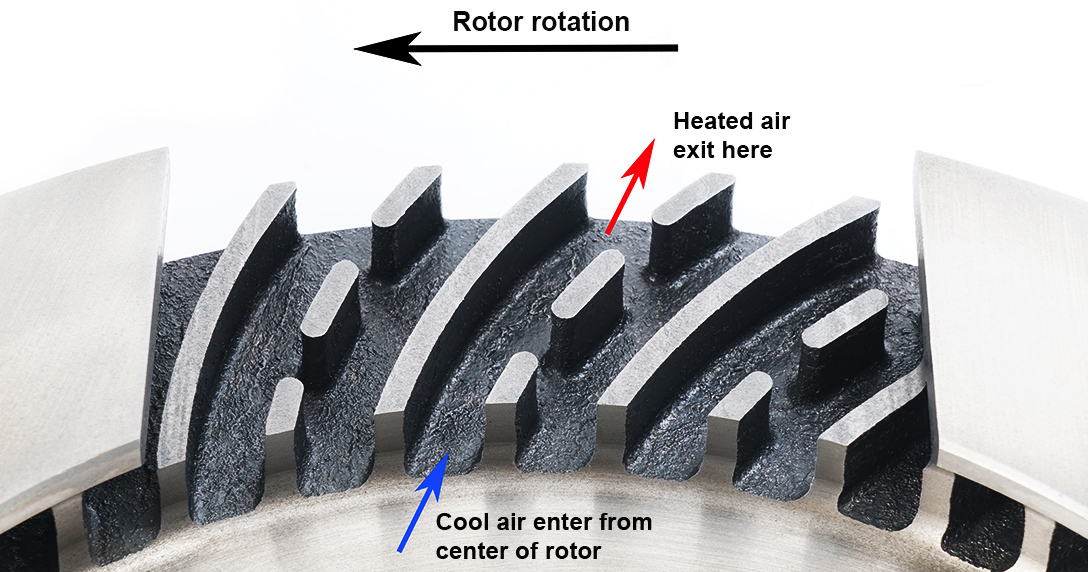

- Fully-floating 2-piece rotors, with 72 directional ventilation vanes for optimal cooling performance. Runs up to 30% cooler than O.E. rotors

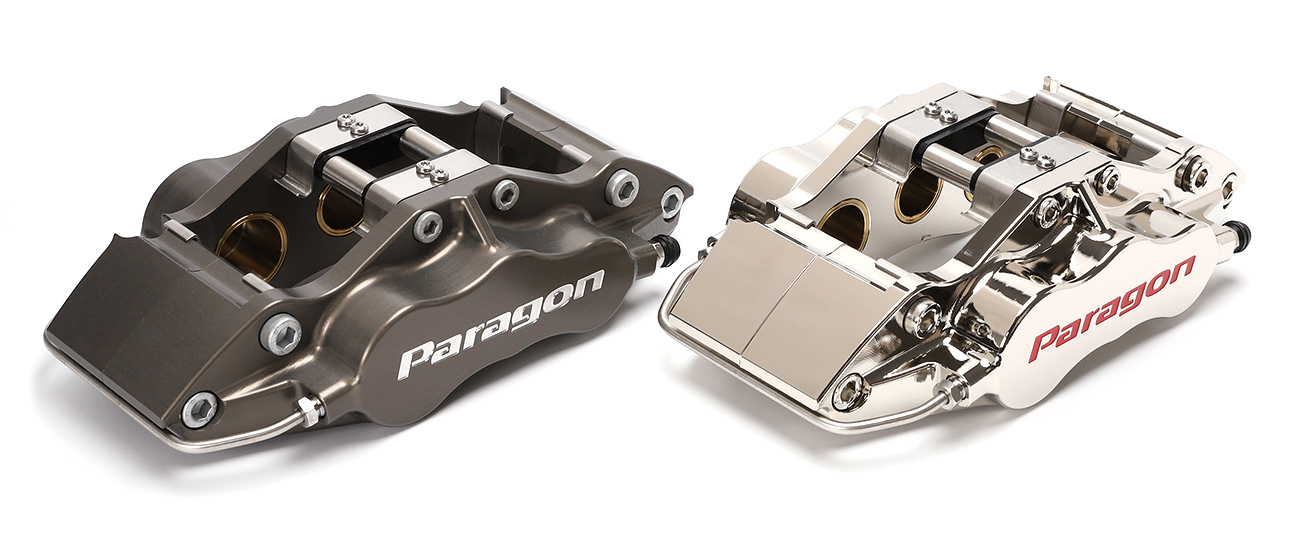

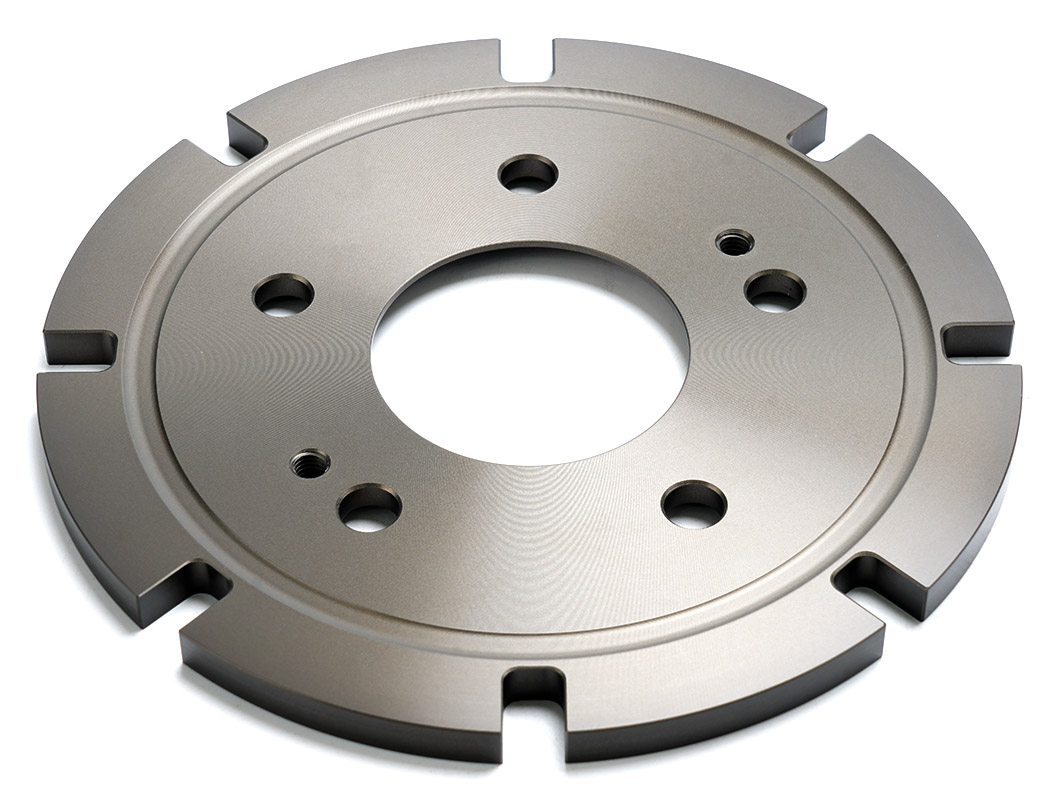

- Hard anodized/ENP nickel plated calipers, and hard anodized rotor hats for increased resistance to wear and discoloration under extreme track conditions
- Piston sizes optimized for each application. Designed to work flawlessly with OEM ABS and brake master cylinder. Compatible with OEM rear brakes. Minimal change in brake bias.
- Confidence-inspiring heat resistance during extended sessions. Optimum bite, modulation characteristics, thermal stability, and durability
- Saves 8.8 lbs of unsprung weight vs. OEM (17-19 models, 355mm kit)
- Recommended usage: Street / Track
- Complete pre-assembled axle set

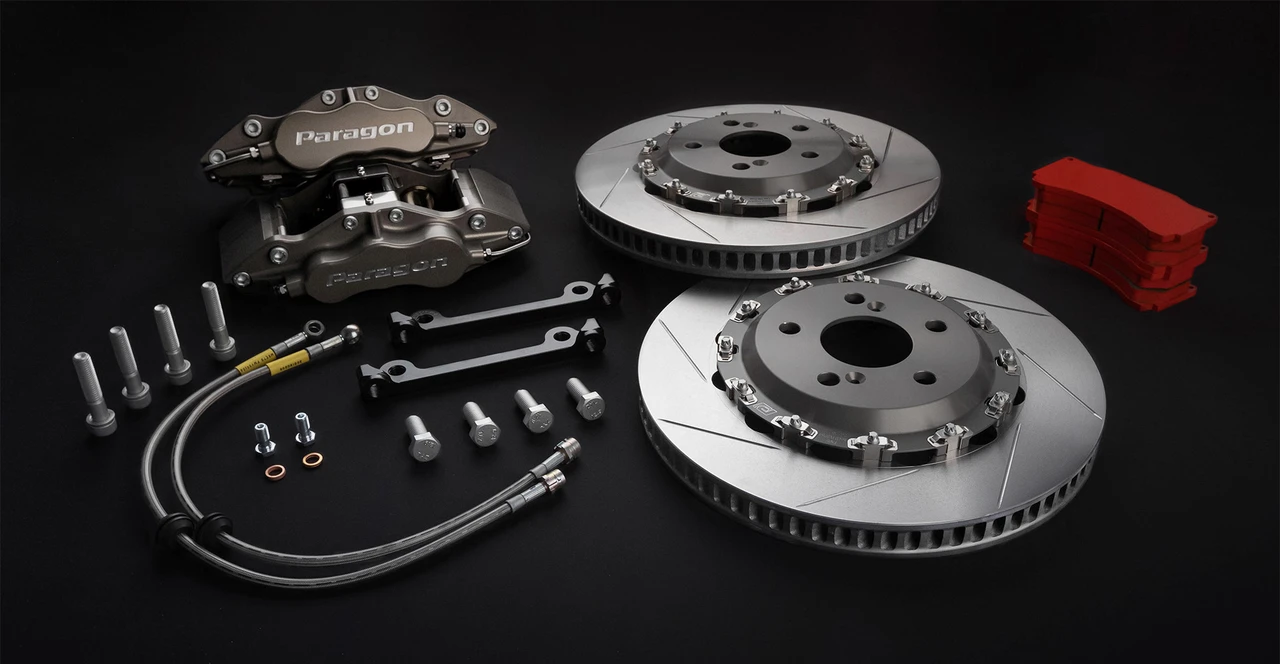

Includes:
- One pair of Paragon PA015 / PA035 6 piston calipers (hard anodized/ENP nickel plated) *Only difference between the PA015 and PA035 calipers is the maximum rotor size they can accommodate

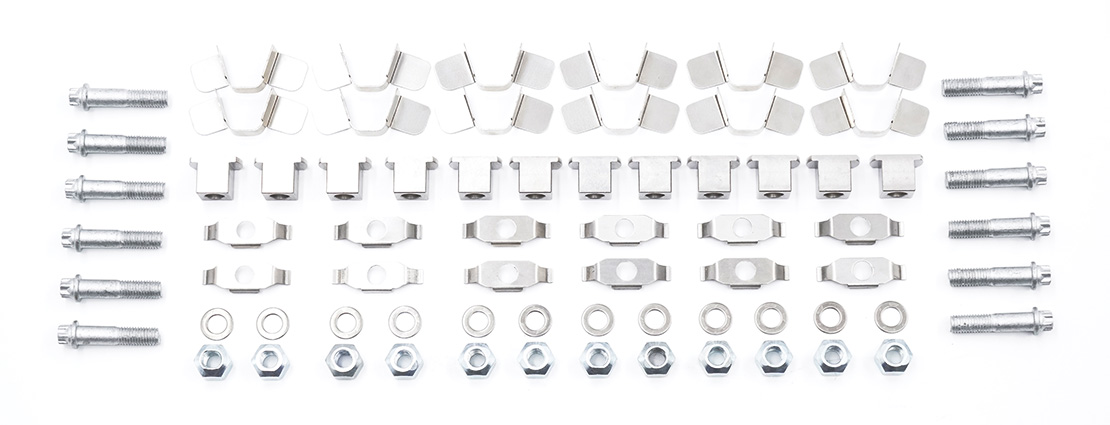

- One pair of Paragon 72 vane fully-floating 2-piece rotor assemblies with hard anodized 6061-T6 aerospace grade aluminum hats, stainless steel bobbins, and anti-rattle clips

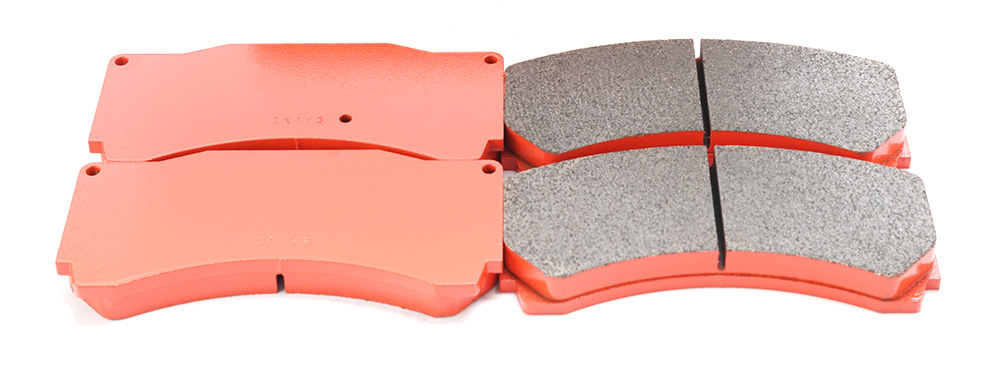

- One set of Paragon P3 "Street/Track" semi-metallic brake pads (manufactured by Winmax Japan, other compounds available at additional cost)

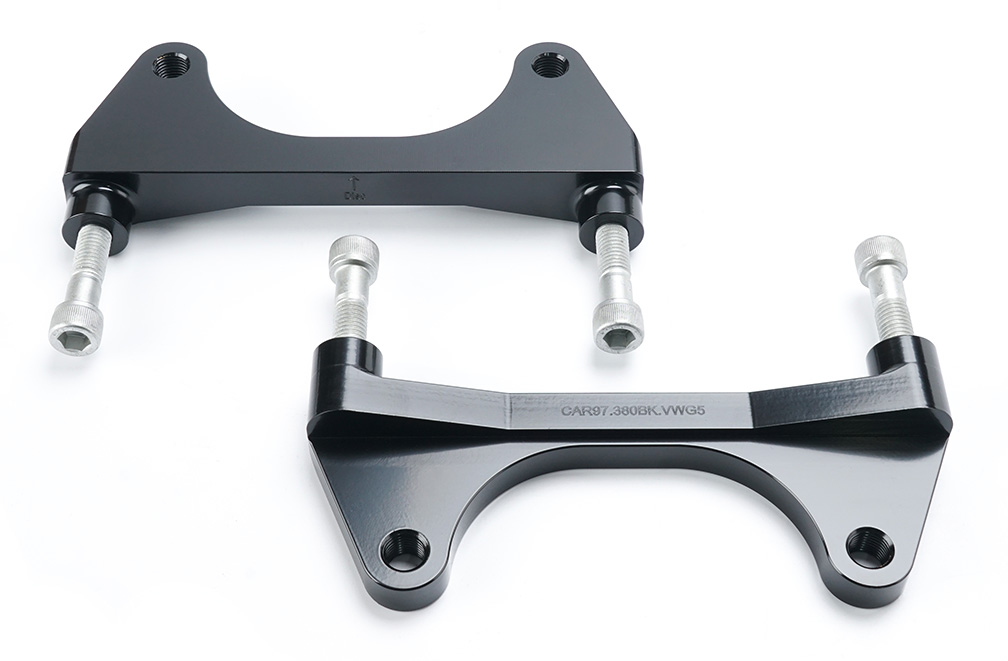

- One pair of caliper mounting brackets and all necessary hardware

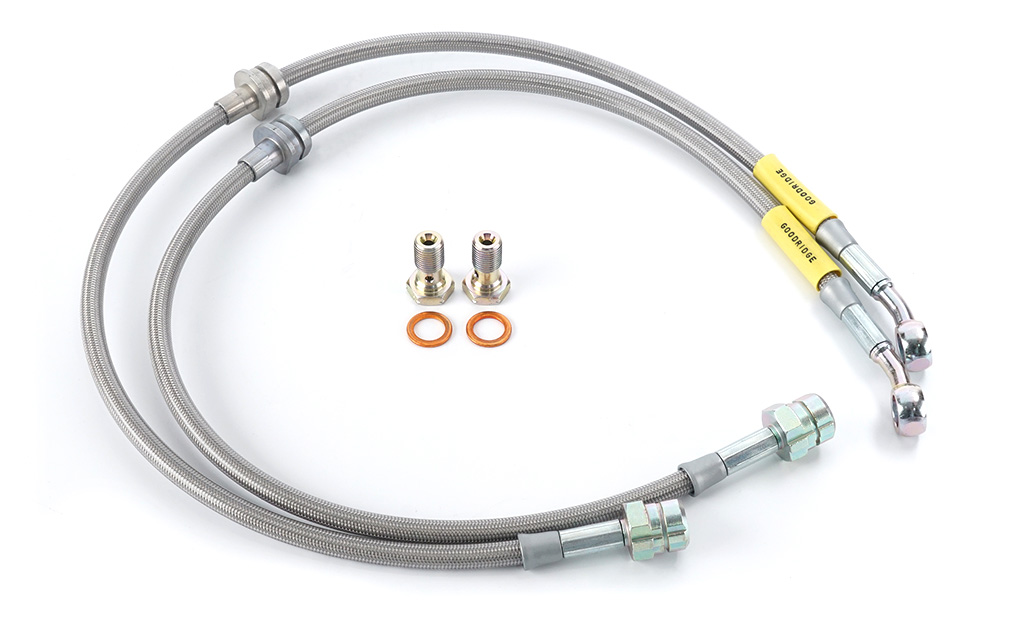

- One pair of Goodridge DOT approved stainless steel braided brake lines
- One set of caliper anti rattle clips
- Detailed installation manual
***Please verify wheel fitment / clearance before ordering. All Paragon big brake kits are custom made/packaged to order, and cannot be returned due to wheel fitment issues.
**355mm and 370mm brake kits generally require 18" or larger wheels. Fitment varies due to different specs / wheel design. Verify fitment with wheel fitment template.
355mm kit test fit approved wheels:
- OEM FK8 20x8.5 +60
- Rays GramLights 57CR 18x9.5 +38
- Rays NE24 CS 19x9.5 +44
- Rays G025 19x9.5 +44
- Volk Racing TE37 18x9.5 +38
- Volk Racing TE37 Saga 18x10 +40
- Volk Racing TE37 Saga 18x11 +37 (System Motorsports spec)
- Volk Racing CE28 Club Racer II 18x9.5 +38
- Volk Racing TE37UL M spec 19x9.5 +36
- Superspeed RF05RR 18x9.5 +38
- Mugen MF10 18x9.5 +45
- Apex VS-5RS 18x10.5 +40 / 19x9.5 +45
- Desmond Regamaster EVO 18x10 +50
- Titan 7 T-D6 18x9.5 +45
- Titan 7 T-C5 18x9.5 +45
- Titan 7 T-M20 19x9.5 +45
- BBS SR 18x8
- Enkei TS-7 18x9.5 +45
- Sparco ProCorsa 18x9 +39
370mm kit test fit approved wheels:
- OEM FL5 19x9.5 +60
- Volk Racing TE37 18x9.5 +38
- Titan 7 T-S5 19x9.5 +45
Kit Number:
PBK.02.021.355.320.TL.01.02.Px.F (355x32mm Rotor)
PBK.05.021.370.360.TL.01.02.Px.F (370x36mm Rotor)
